Key Features :
♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling
uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically
Applications :

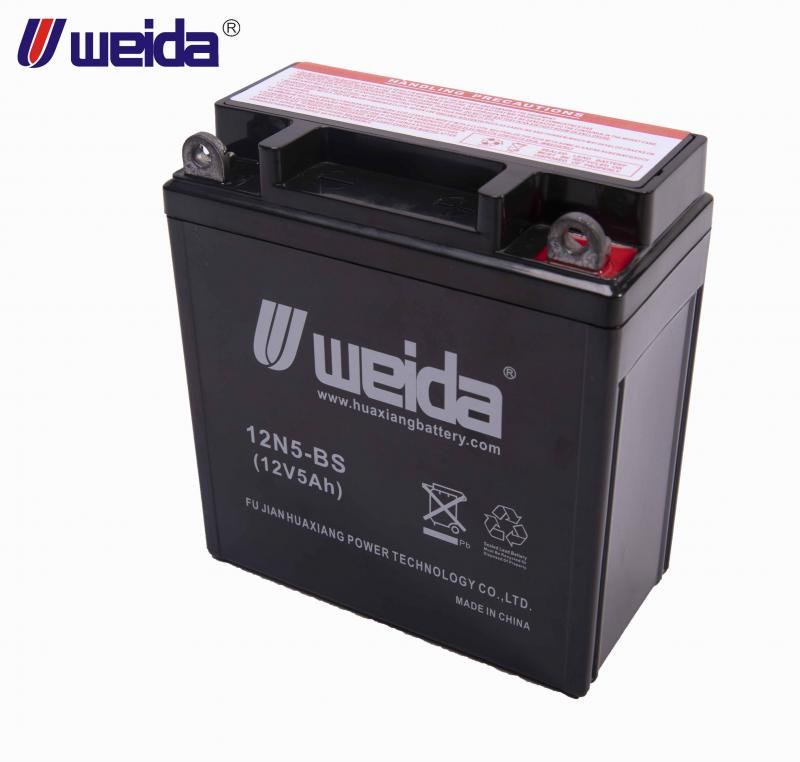

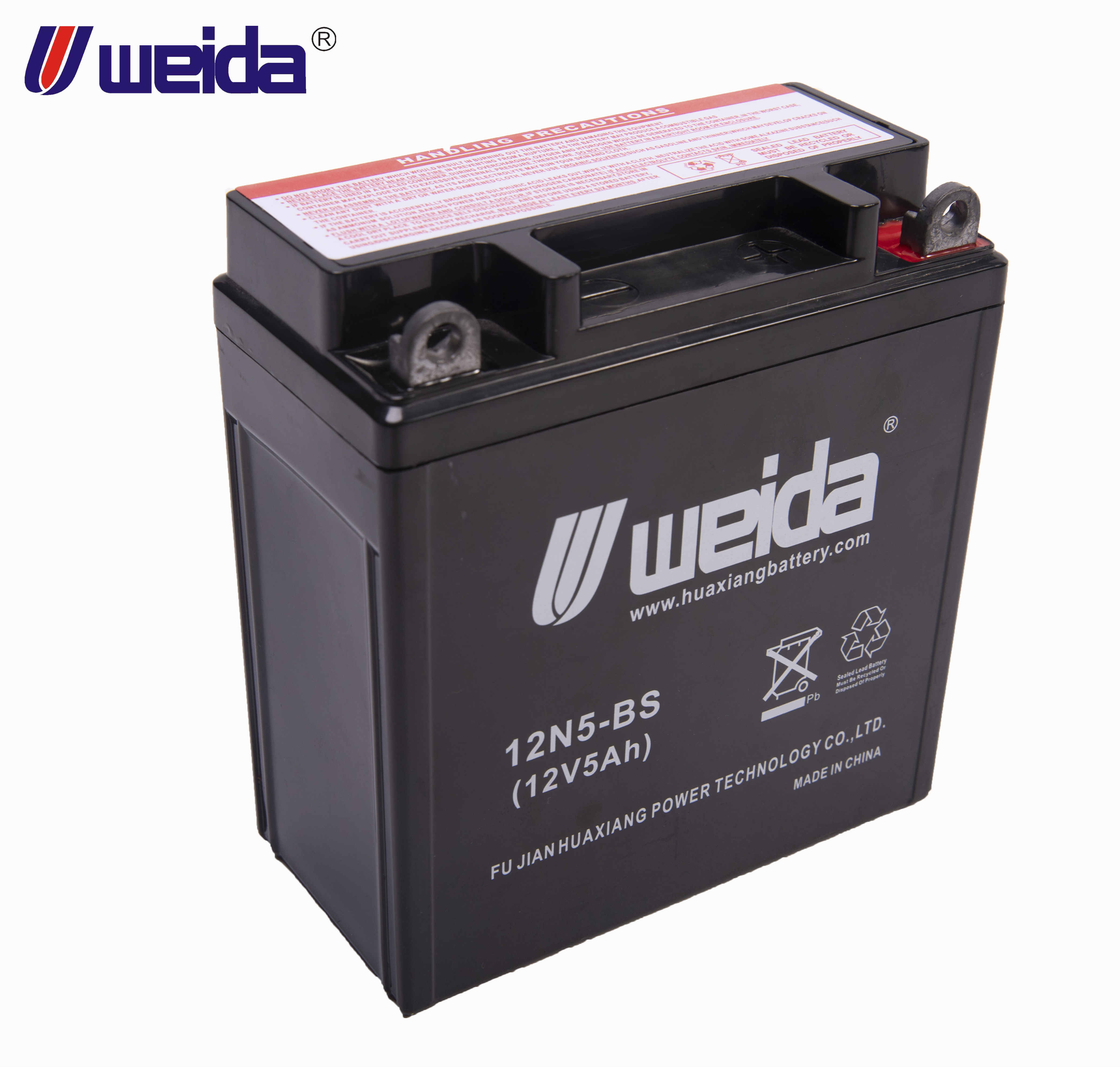

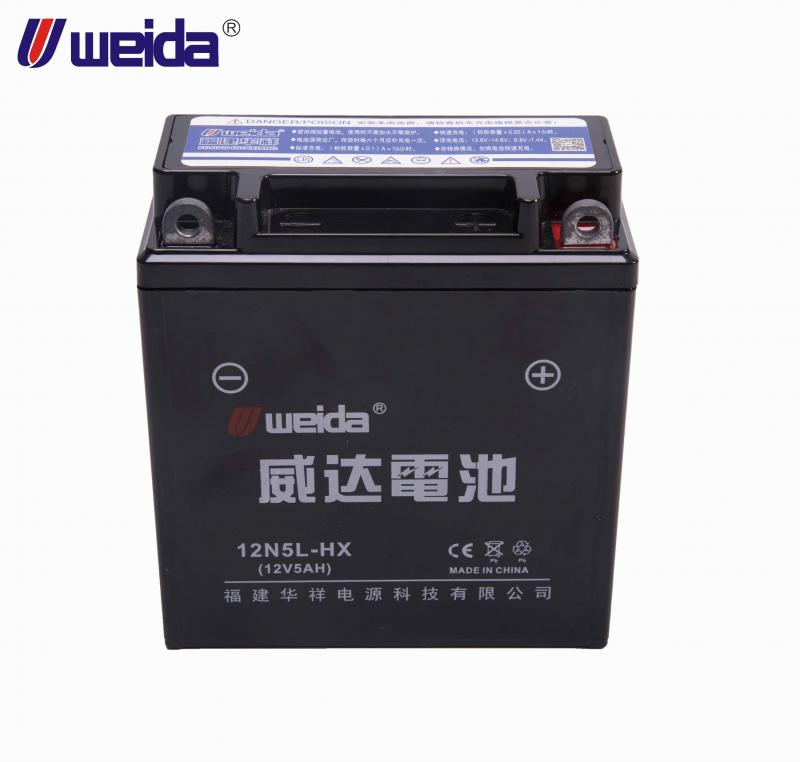

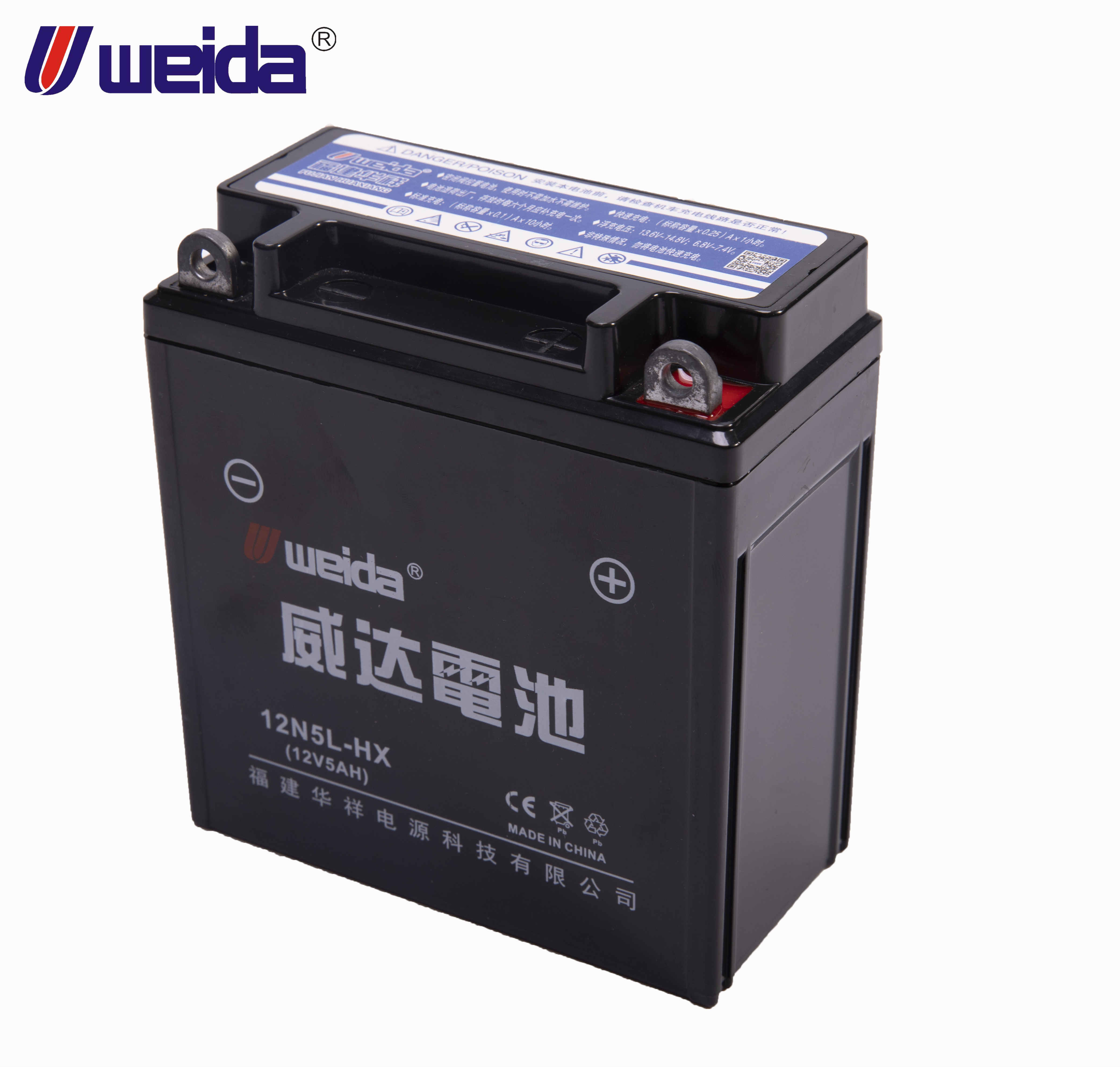

Specifications
|
Nominal Voltage |
12 V |
|
|
Capacity(10HR, 25℃) |
5Ah |
|
|
Dimension |
Length |
114±2mm (4.49inch) |
|
Width |
70±2mm (2.76inch) |
|
|
Height |
107±2mm (4.21inch) |
|
|
Approx. Weight |
1.85kg (4.08lbs)±5% |
|
|
Operating temperature range |
-20℃～50℃(-4℉～122℉) |
|
|
Standard Charging method (25℃) |
Current |
0.5A |
|
Time |
5~10h |
|
|
Quickly Charging method (25℃) |
Current |
2.5A |
|
Time |
1h |
|
|
Terminal material |
Lead |
|
|
Container Material |
ABS |
|
