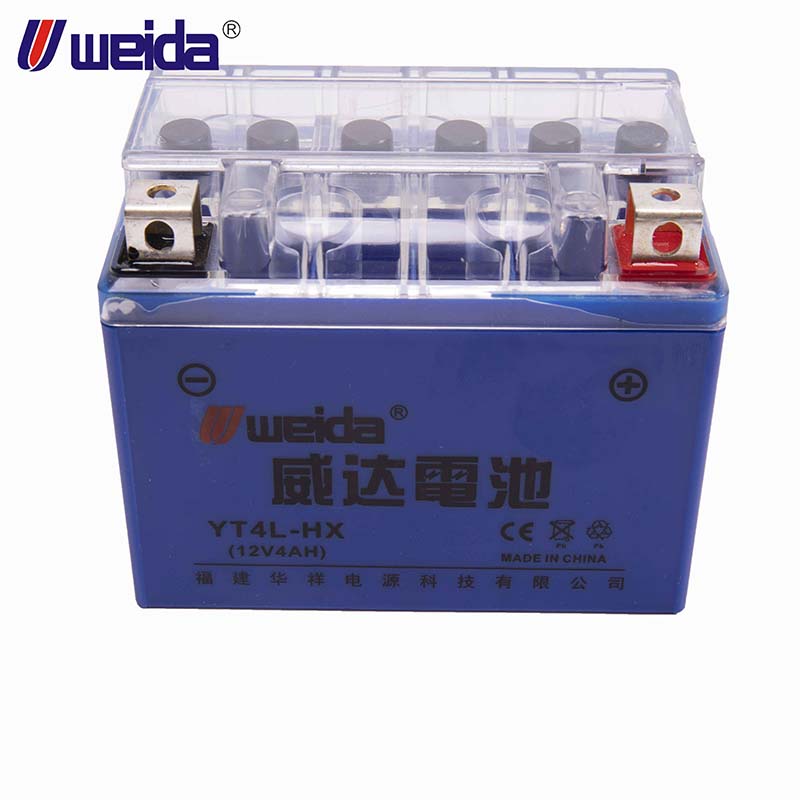

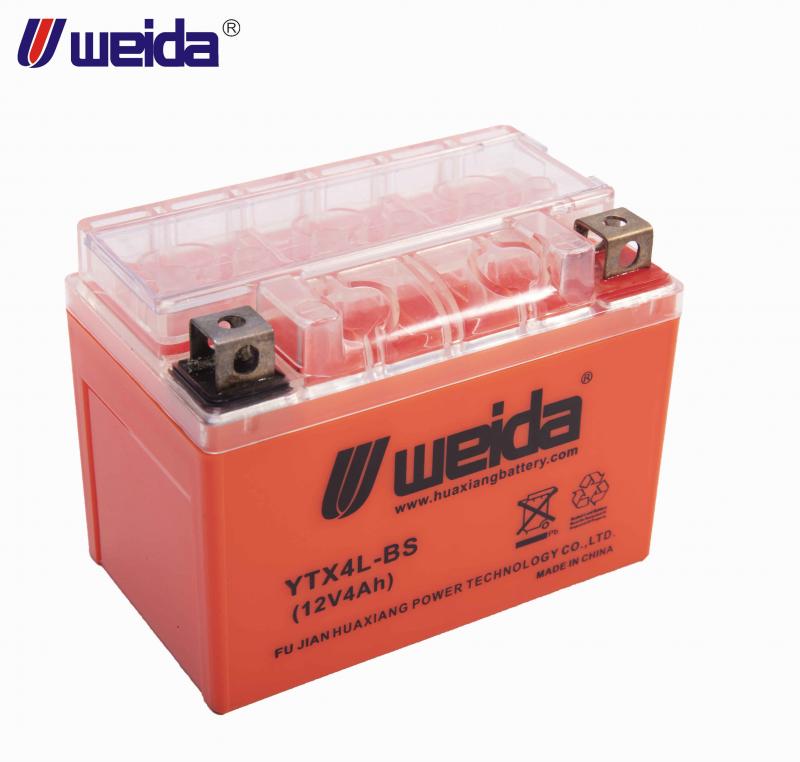

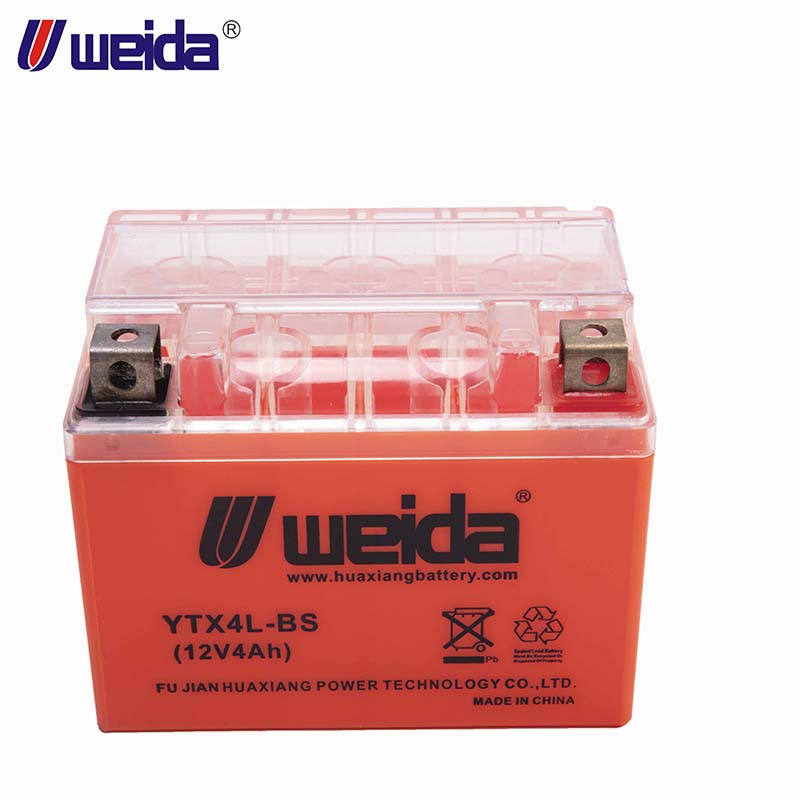

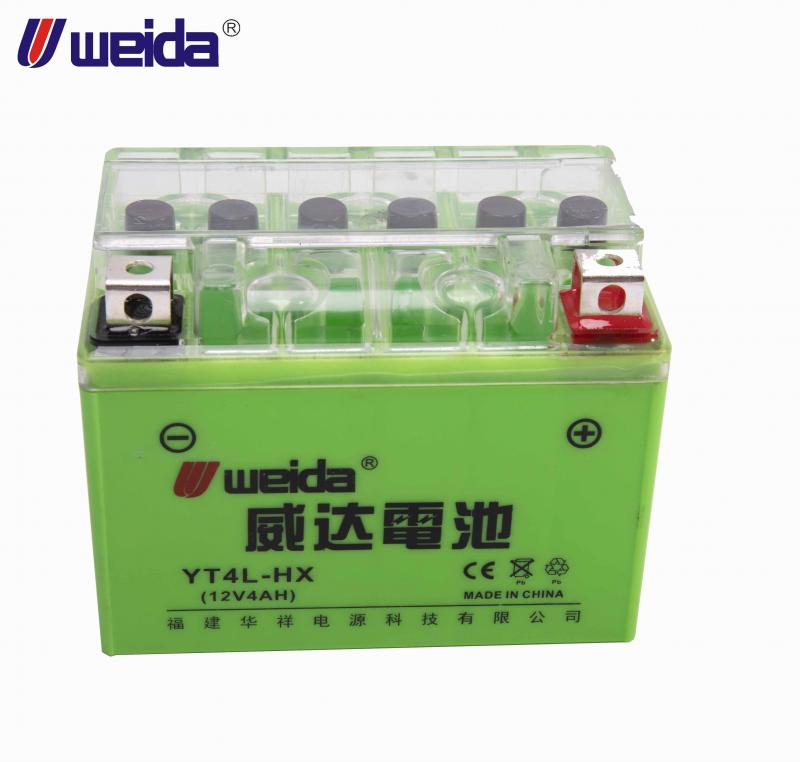

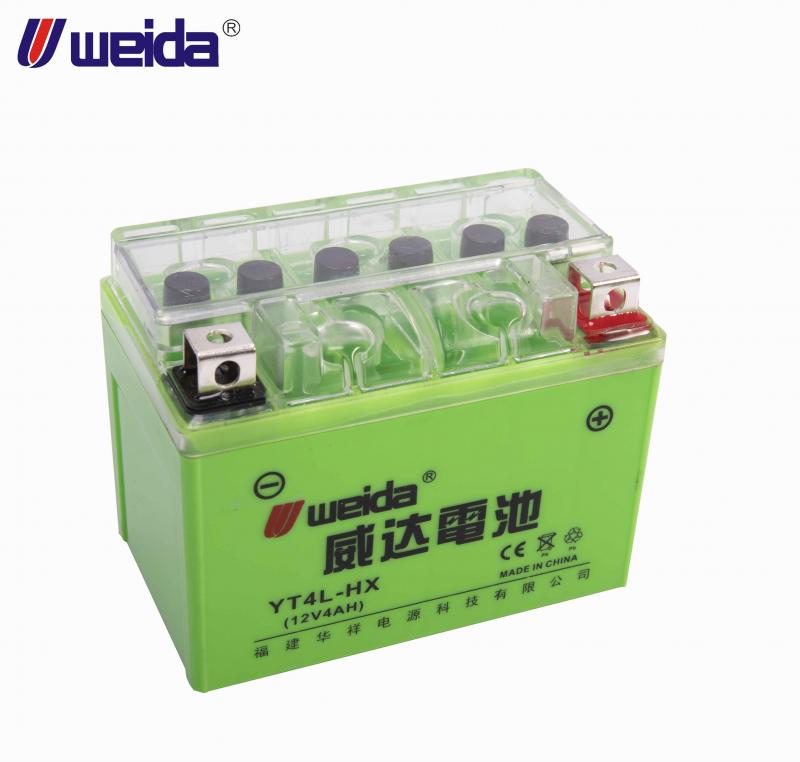

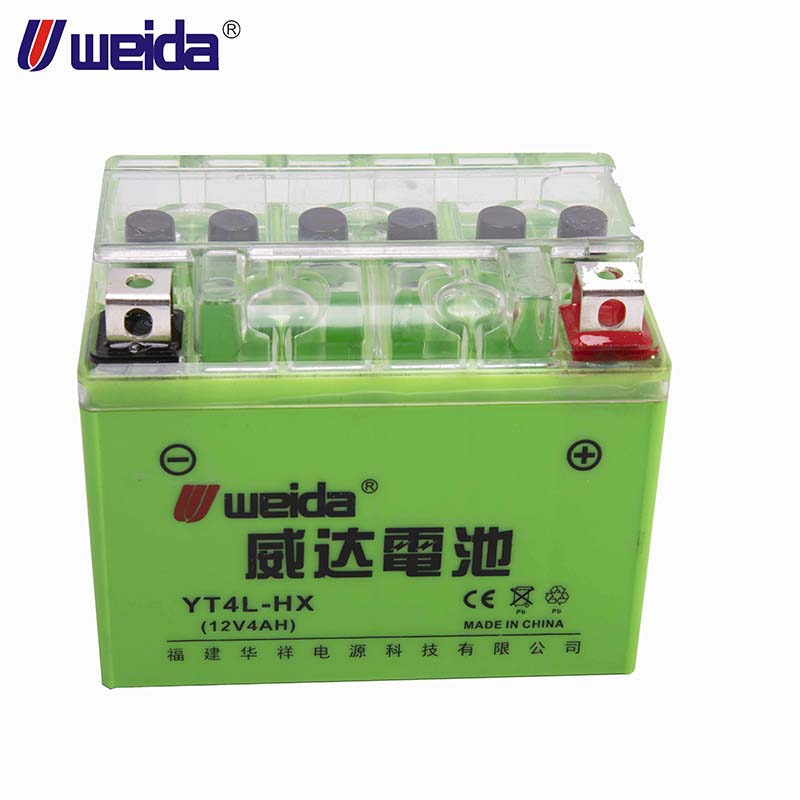

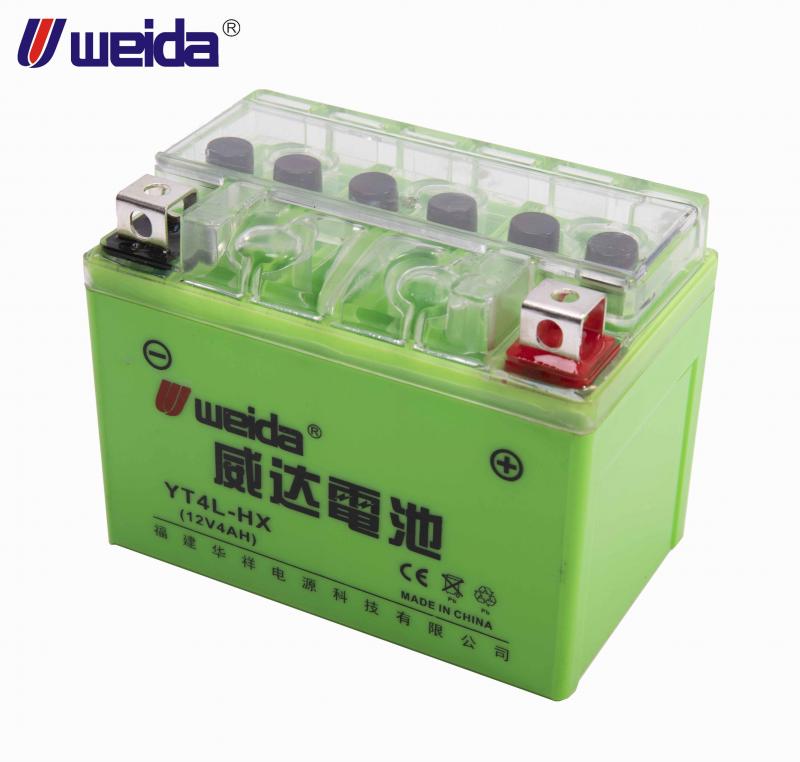

HUAXIANG Lead Acid Battery 12V 4AH Solar Battery GEL Deep Cycle for Motorcycle
Models:YTX4/GTZ5S
Size:113*69*83mm
Capacity:4AH
Voltage:12V
Product Features:
1.Capacity range:4AH
2.Voltage class:12V
3.Long design life(25℃):12 years for 2V;18 years for 12V
4.Low self-discharge rate:≤2.5% per month
5. High sealed reaction efficiency:≥98%
6.High specific energy density
7.Excellent charge acceptance
8.Wide operation temperature: ﹣40℃ to +60℃ 8.Grid:patent primary and secondary grid structure design
9.Positive plate:pasted flat type,high temperature and humidity formation technics
10.Separator:high porosity PE separator with glass fibre good cyclic characteristics and lower resistance
11.Battery container:High strength ABS(UL94-HB) and UL94-VO is optional 12.Post sealing:patent double layer post sealing
Specifications
|
Nominal Voltage |
12 V |
|
|
Capacity(10HR, 25℃) |
4Ah |
|
|
Dimension |
Length |
114±2mm (4.49inch) |
|
Width |
70±2mm (2.76inch) |
|
|
Height |
87±2mm (3.43inch) |
|
|
Approx. Weight |
1.47kg (3.24lbs)±5% |
|
|
Operating temperature range |
-20℃～50℃(-4℉～122℉) |
|
|
Standard Charging method (25℃) |
Current |
0.4A |
|
Time |
5~10h |
|
|
Quickly Charging method (25℃) |
Current |
2A |
|
Time |
1h |
|
|
Terminal material |
Lead |
|
|
Container Material |
ABS |
|
