Key Features :
♦Maintenance-Free ,Absorbent Glass Mat Technology
♦Low Self Discharge
♦Long Designed service Life ,Deep Cycles
♦Excellent Discharge Performance
♦Environment Friendliness
♦Wide suitability of ambient temperature range

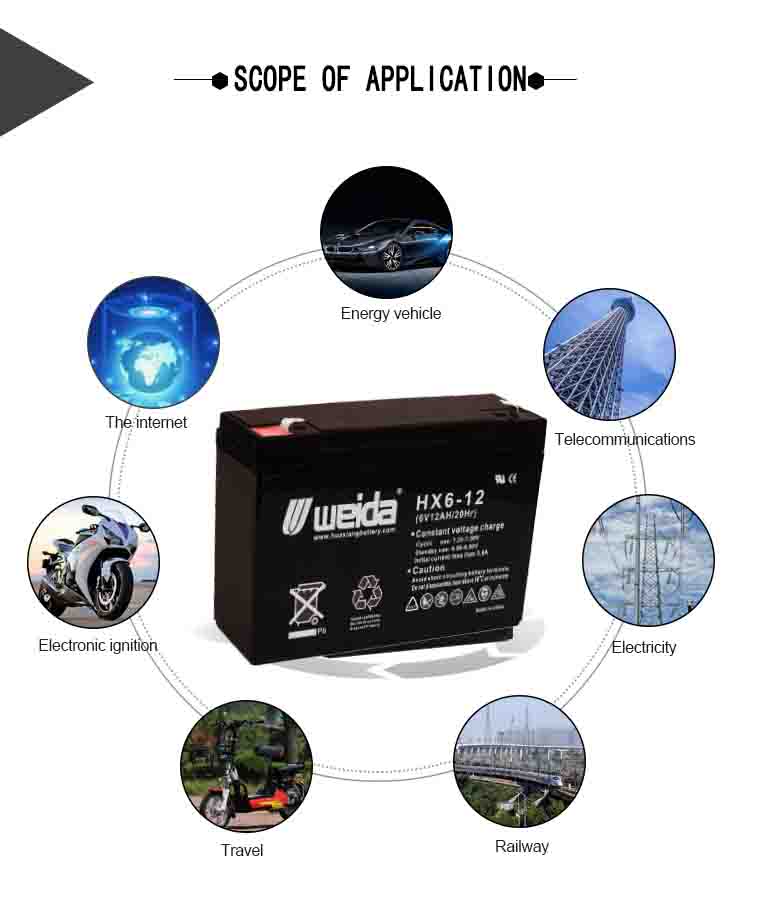

Applications :
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power source for portable devices or tools

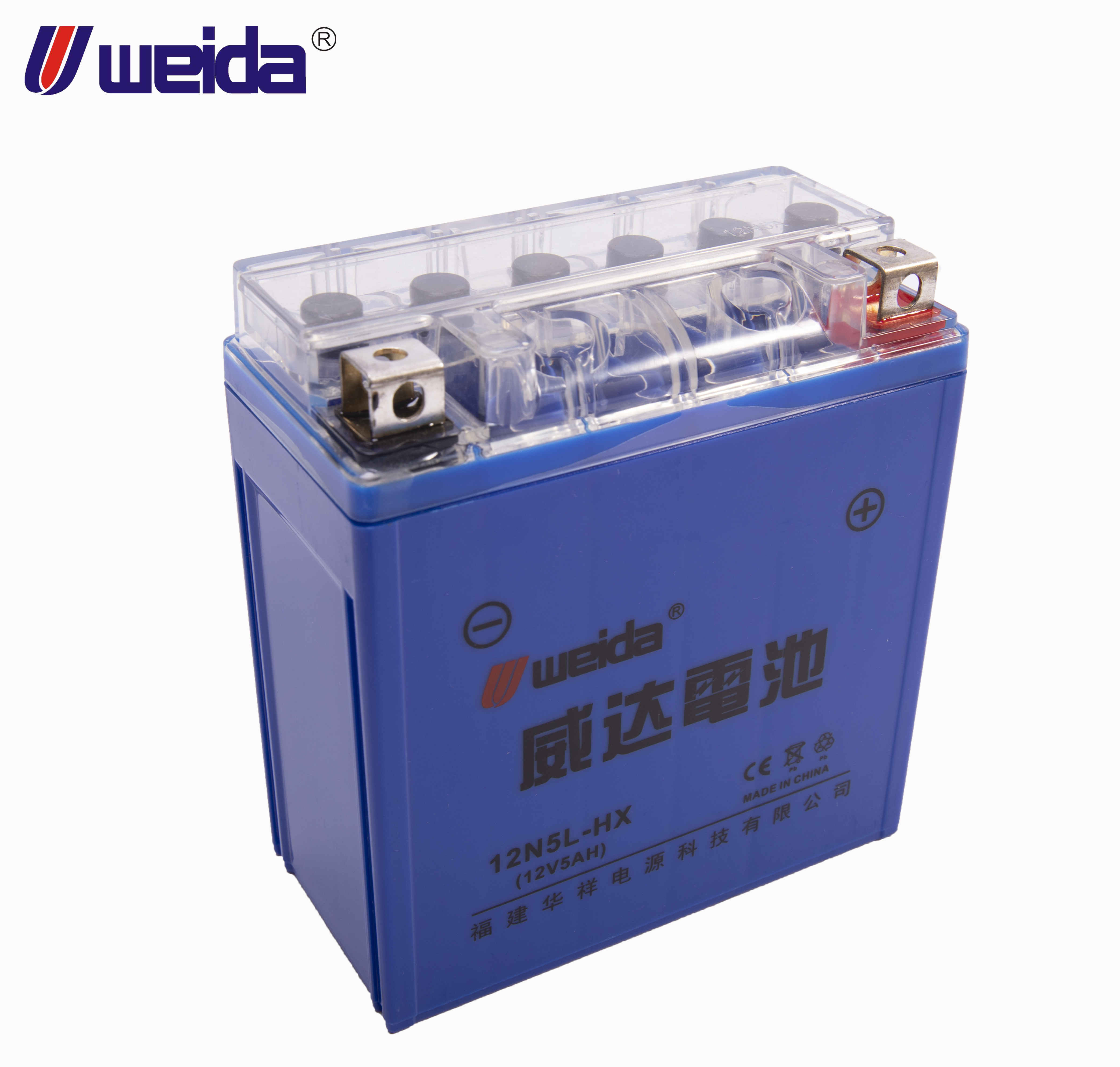

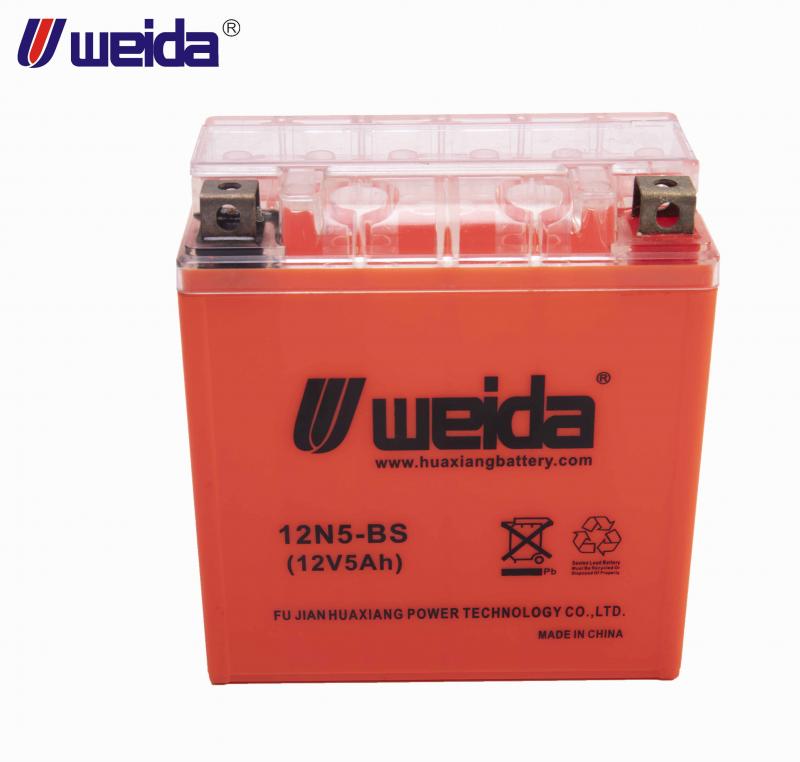

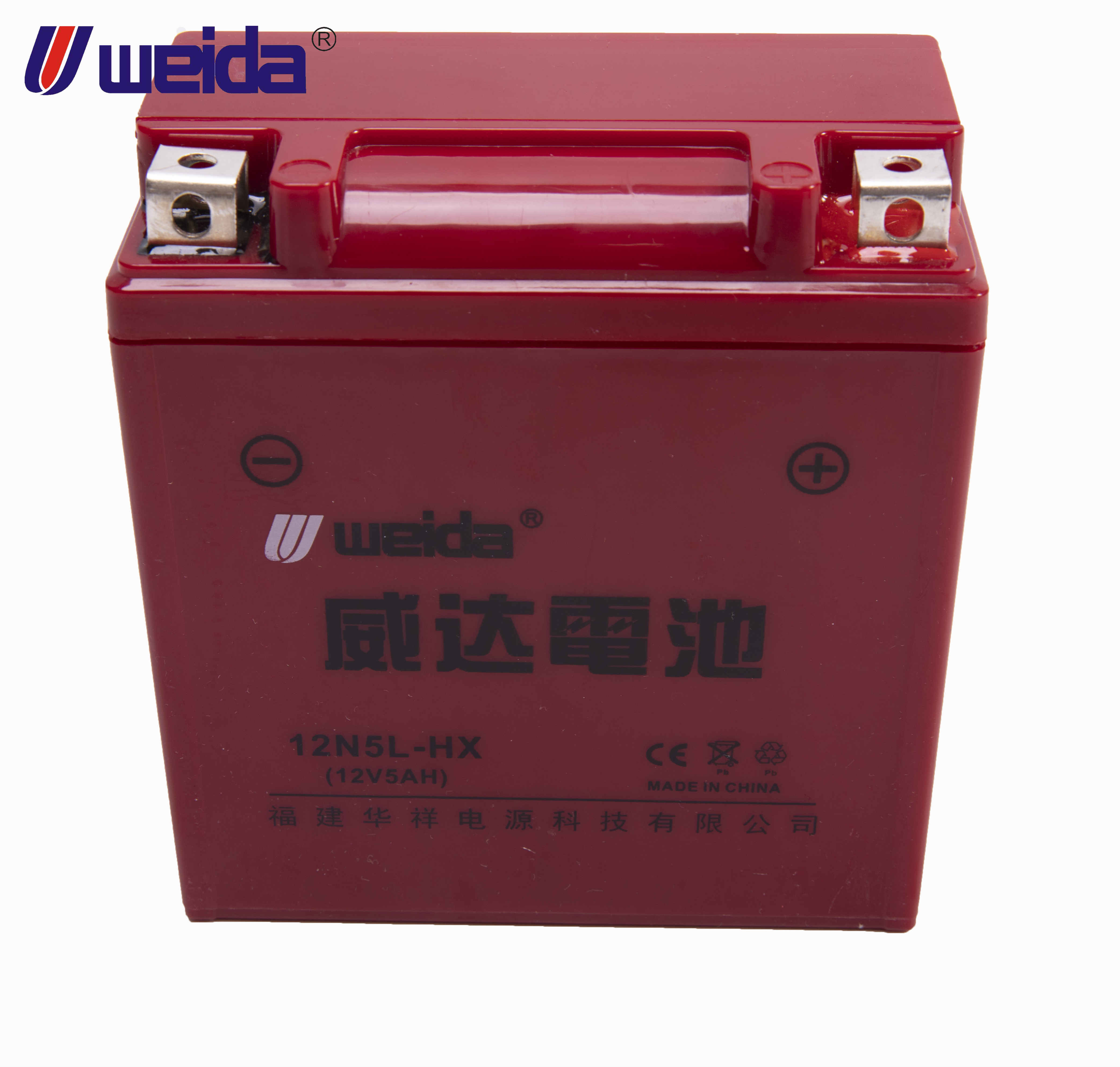

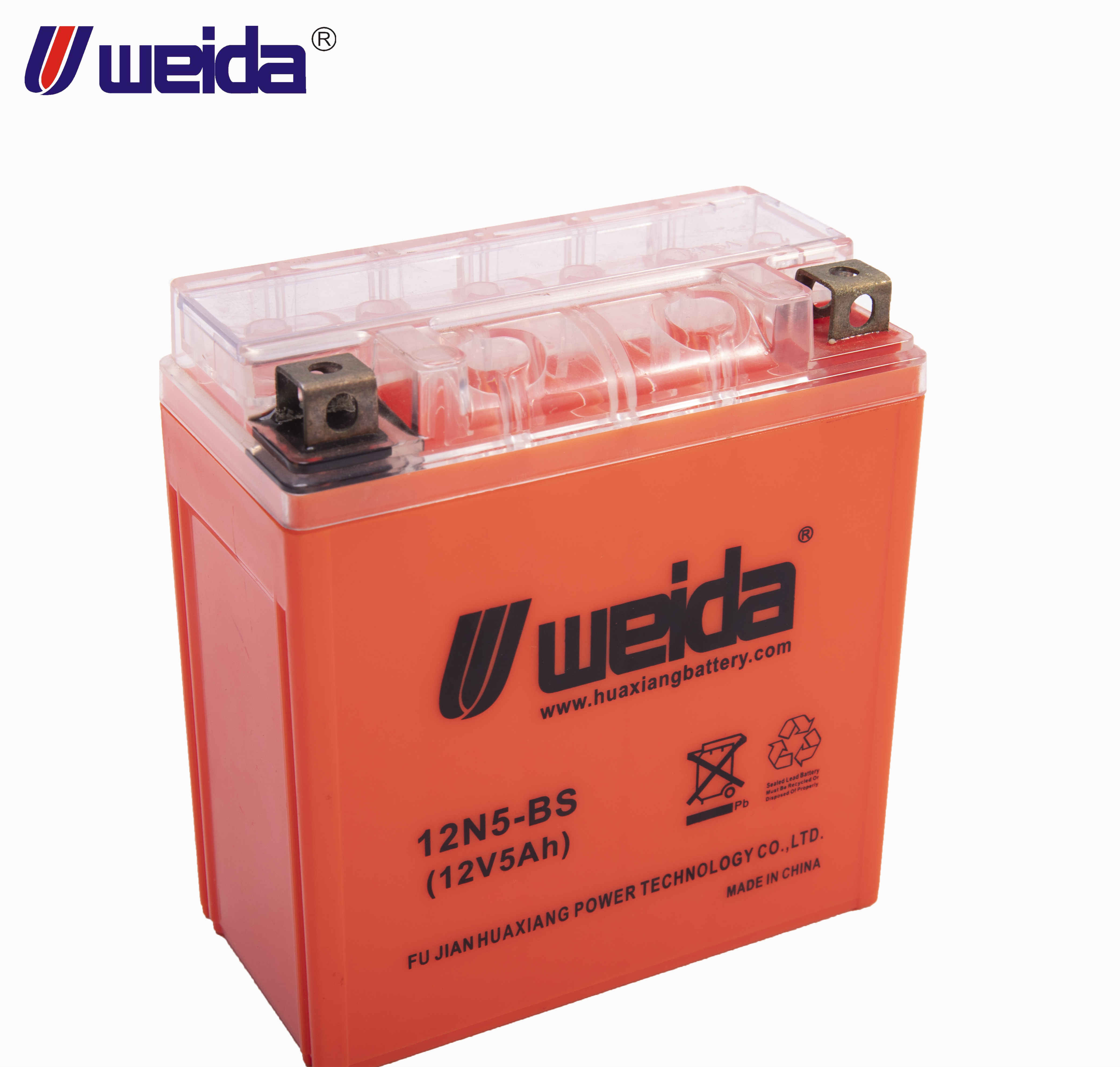

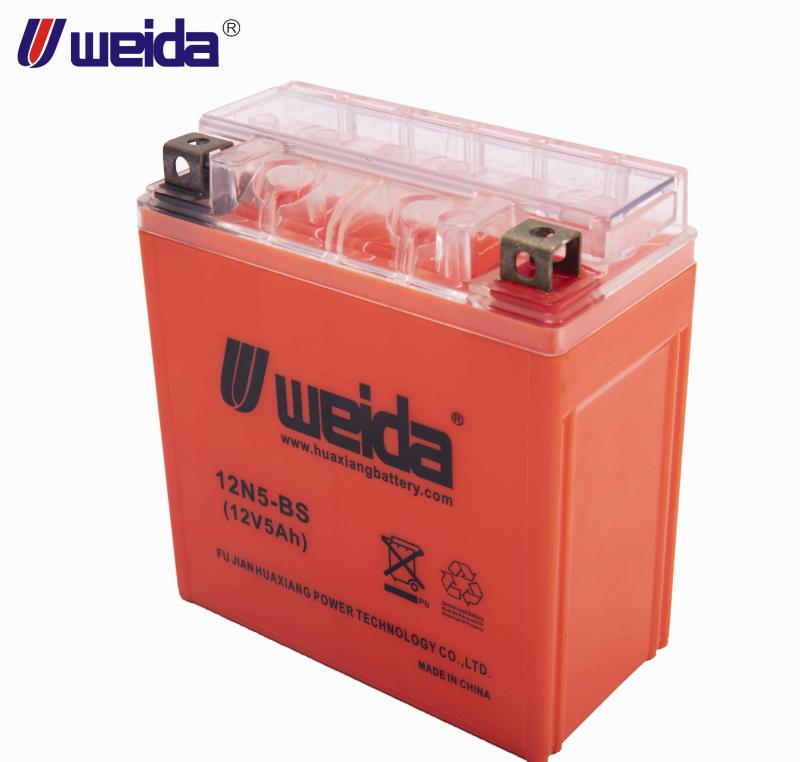

Specifications
|
Nominal Voltage |
12 V |
|
|
Capacity(10HR, 25℃) |
5Ah |
|
|
Dimension |
Length |
114±2mm (4.49inch) |
|
Width |
70±2mm (2.76inch) |
|
|
Height |
107±2mm (4.21inch) |
|
|
Approx. Weight |
1.85kg (4.08lbs)±5% |
|
|
Operating temperature range |
-20℃～50℃(-4℉～122℉) |
|
|
Standard Charging method (25℃) |
Current |
0.5A |
|
Time |
5~10h |
|
|
Quickly Charging method (25℃) |
Current |
2.5A |
|
Time |
1h |
|
|
Terminal material |
Lead |
|
|
Container Material |
ABS |
|
