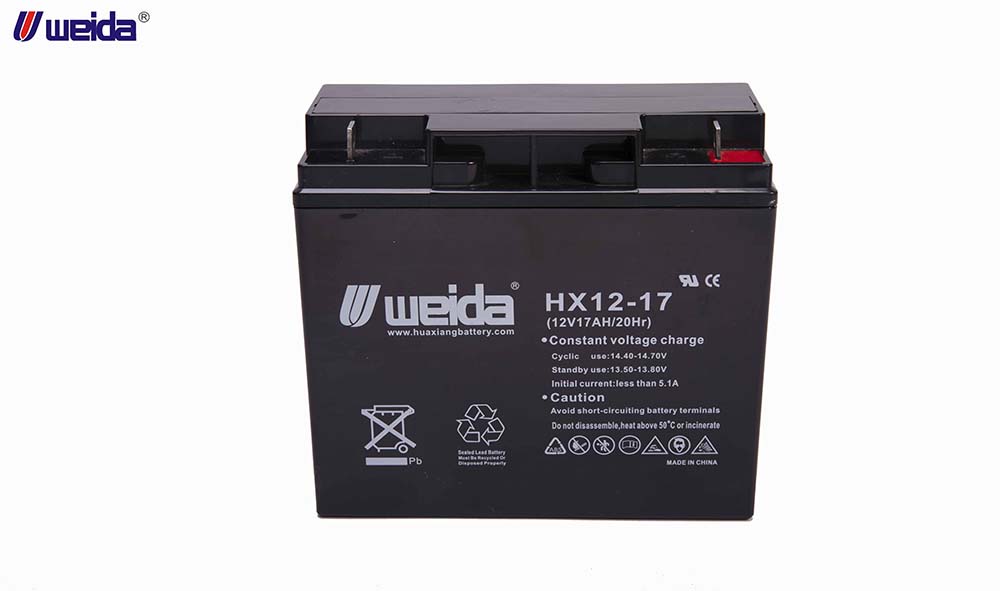

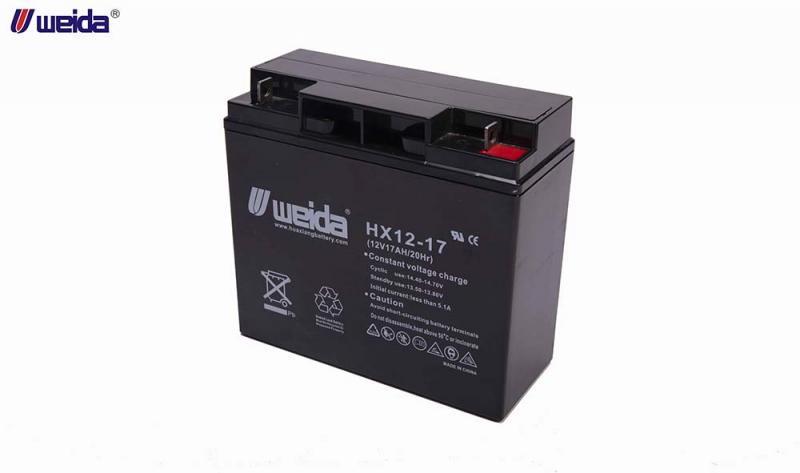

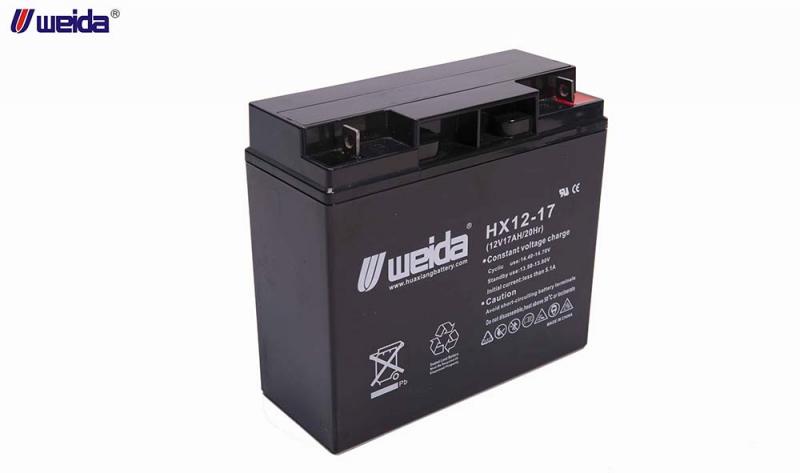

12V 17Ah Rechargeable UPS Battery Safety Sealed Lead Acid Batteries AGM Storage Battery HX12-17
Application:
Electricity& Communication System
Solar &Wind Energy Storage System
Uninterrupted Power Supply system(UPS)
Emergency Power Supply system(EPS)
Emergency Lighting System &Small Lamp
Control Equipments
Medical Equipment
Railway, Aerospace and navigation
EV
TECHNICAL INFORMATION
| Nominal Voltage | 12V | |
| Capacity(10HR, 25°C) | 4Ah | |
| Dimension | Length | 181±2mm(7.06inch) |
| Width | 77±2mm(3inch) | |
| Height | 167±2mm(6.51nch) | |
| Approx. Weight | 5.1kg (11.22lbs)±4% | |
| Operating temperature range | -20°C~50°C(-4°F~122°F) | |
| Standard charging method(25°C) | Current | 0.5A |
| Time | 5~10H | |
| Quickly charging method(25°C) | Current | 2.5A |
|
|
Time | 1H |
| Terminal material | Lead/Copper | |
| Container material | ABS | |
