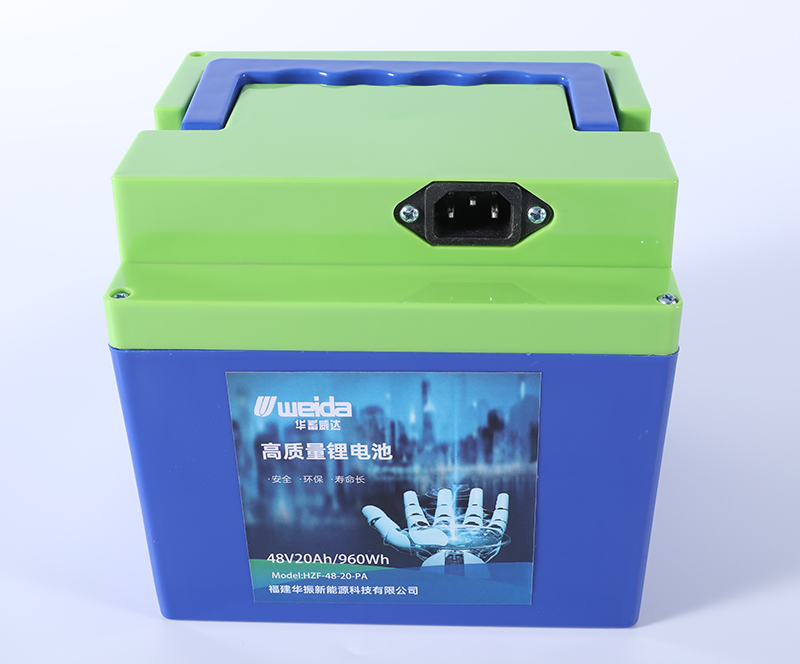

48V20Ah OEM Elecrical Scooter Lithium Battery with High Performance and Low discharge Li-ion Battery Pack
model:HZF-48-20
Product Features
1.Large capability and long life for all high power output applications.
2.Strong over-discharge resistance and charge retention.
3.Accept OEM/ODM: Battery Voltage,Capacity,Current,Size ect all can be customized to meet specific applications
Product Description
Electrical Characteristics
Technology
Lithium Iron Phosphate
Nominal Voltage
48V
Nominal Capacity
20Ah±5%@0.2C
Energy
960Wh
Cycle Life
100% Depth of Discharge ~2000 cycles
Internal Resistance
30mΩ
Self Discharge
＜3% per month @25℃
Charge
Charge mode
CC&CV(0.2C Constant current & 14.6V
Constant voltage@0.02C)
Max. Charge Voltage
54.75V
Standard Charge Current
3A
Max.Charge Current
7.5A
Discharge
Discharge Cut-o ffVoltage
37.5V
Standard Discharge Current
7.5A
Max.Continuous
Discharge Current
15A
Pulse Current
/
Operating Condition
Storage Temperature
0℃to45℃(32℉to113℉)
Humidity
60±25%
Charge Temperature
0℃to 45℃(32℉to113℉)
Discharge Temperature
-20℃to 45℃(32℉to113℉)
Structure
Water Dust Resistance
IP55
Terminal
F8
Carrying
/
Case and Cover
ABS
Dimension（L*W*H)
182*155*172mm
Weight
Approx10Kg
Battery Application
