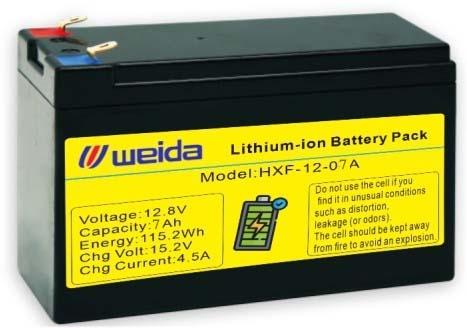

12V 7Ah Lithium Iron Phosphate (LiFePO4) Battery
Model:HXF-12-7-SA
Advantages
1.More safety and environmentally friendly;
2.Good high temperature performance ( -20ºC~60ºC);3.Deep cycle life ( more than 2000 cycles);
their tips, with electrical tape.
Product Description
|
Electrical Characteristics |
Technology |
Lithium Iron Phosphate |
|
Nominal Voltage |
12.8V |
|
|
Nominal Capacity |
7Ah±5%@0.2C |
|
|
Energy |
89,6Wh |
|
|
Cycle Life |
100% Depth of Discharge ~2000 cycles |
|
|
Internal Resistance |
90mΩ |
|
|
Self Discharge |
＜3% per month @25℃ |
|
|
Charge |
Charge mode |
CC&CV(0.2C Constant current & 14.6V Constant voltage@0.02C) |
|
Max. Charge Voltage |
14.6V |
|
|
Standard Charge Current |
1.4A |
|
|
Max.Charge Current |
3,5A |
|
|
Discharge |
Discharge Cut-o ffVoltage |
10V |
|
Standard Discharge Current |
1.8A |
|
|
Max.Continuous Discharge Current |
7A |
|
|
Pulse Current |
20A＜3S |
|
|
Operating Condition |
Storage Temperature |
0℃to45℃(32℉to113℉) |
|
Humidity |
60±25% |
|
|
Charge Temperature |
0℃to 45℃(32℉to113℉) |
|
|
Discharge Temperature |
-20℃to 45℃(32℉to113℉) |
|
|
Structure |
Water Dust Resistance |
IP55 |
|
Terminal |
F1 |
|
|
Carrying |
/ |
|
|
Case and Cover |
ABS |
|
|
Dimension（L*W*H) |
151X65X95mm |
|
|
Weight |
Approx 0,85Kg |
Battery Application
