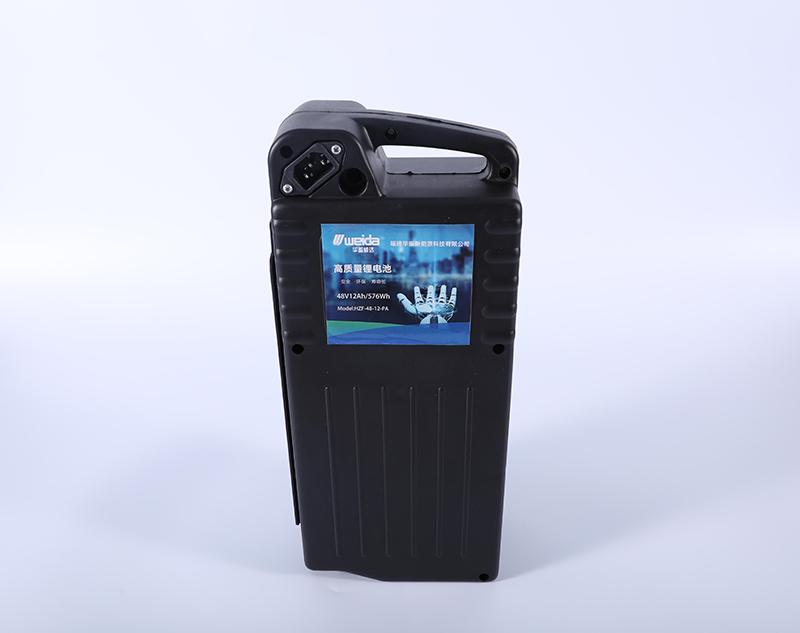

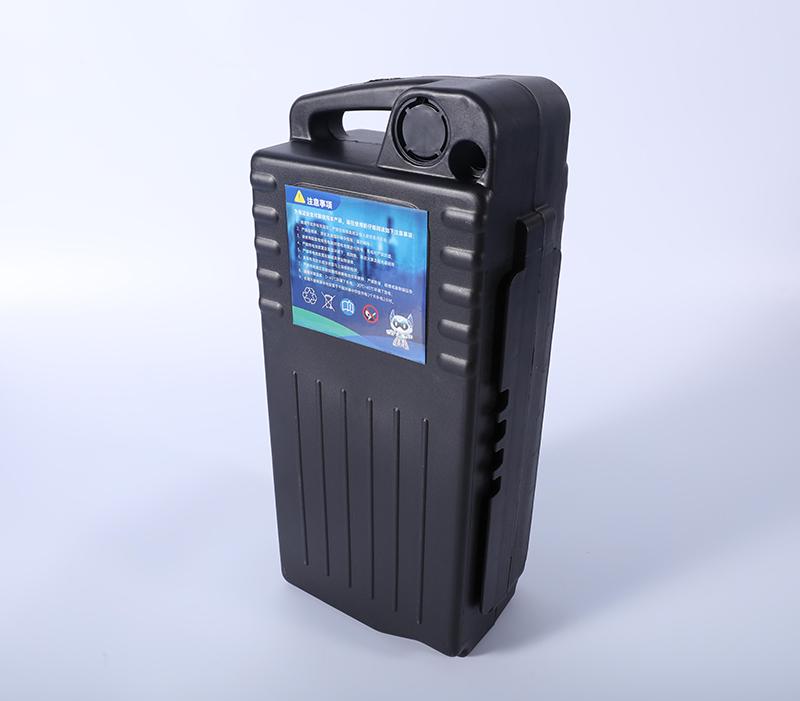

48V15Ah OEM/ODM Rechargeable Lithium Battery Li-ion LiFePo4 Battery Pack
Model:HZF-48-45
Product Features
1. Lighter weight, smaller size.
2. High temperature performance.
Product Description
|
Electrical Characteristics |
Technology |
Lithium Iron Phosphate |
|
Nominal Voltage |
48V |
|
|
Nominal Capacity |
15Ah±5%@0.2C |
|
|
Energy |
720Wh |
|
|
Cycle Life |
100% Depth of Discharge ~2000 cycles |
|
|
Internal Resistance |
30mΩ |
|
|
Self Discharge |
＜3% per month @25℃ |
|
|
Charge |
Charge mode |
CC&CV(0.2C Constant current & 14.6V Constant voltage@0.02C) |
|
Max. Charge Voltage |
54.75V |
|
|
Standard Charge Current |
3A |
|
|
Max.Charge Current |
7.5A |
|
|
Discharge |
Discharge Cut-o ffVoltage |
37.5V |
|
Standard Discharge Current |
7.5A |
|
|
Max.Continuous Discharge Current |
15A |
|
|
Pulse Current |
/ |
|
|
Operating Condition |
Storage Temperature |
0℃to45℃(32℉to113℉) |
|
Humidity |
60±25% |
|
|
Charge Temperature |
0℃to 45℃(32℉to113℉) |
|
|
Discharge Temperature |
-20℃to 45℃(32℉to113℉) |
|
|
Structure |
Water Dust Resistance |
IP55 |
|
Terminal |
F8 |
|
|
Carrying |
/ |
|
|
Case and Cover |
ABS |
|
|
Dimension（L*W*H) |
375*165*110mm
|
|
|
Weight |
Approx6.2Kg |
Battery Application
