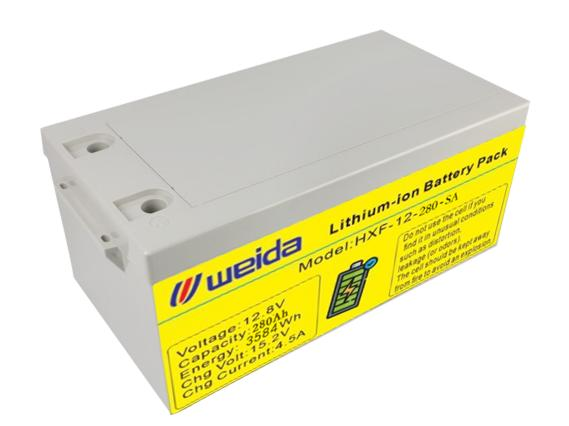

12V 280Ah Lithium Iron Phosphate (LiFePO4) Battery
Model:HZF-12-280-SA
Product Features
Safest LiFePo4: cells for safe use no fire no explosion
Long Life Cycles: >2000 cycles@0.2C,Charge/Discharge at 100%DOD
Powerful Energy: Quick charging,high quality and high discharge rate lithium battery cells providing more energy.
Light Weight: about 40%~50%of the weight of SLA battery
Built-in intelligent BMS: Over Charge /Discharge voltage and current protection, Short circuit protection ,Over temperature protection.
Clean Energy: HuaXiang Lithium Battery are the ultimate ,No toxic material ,No Pb.
Replacement: Replacement for SLA battery with compatible Housing
Customized: Battery Voltage,Capacity,Current,Size ect all can be customized to meet specific applications
Product Description
|
Electrical Characteristics |
Technology |
Lithium Iron Phosphate |
|
Nominal Voltage |
12.8V |
|
|
Nominal Capacity |
280Ah±5%@0.2C |
|
|
Energy |
3584Wh |
|
|
Cycle Life |
100% Depth of Discharge ~2000 cycles |
|
|
Internal Resistance |
100mΩ |
|
|
Self Discharge |
＜3% per month @25℃ |
|
|
Charge |
Charge mode |
CC&CV(0.2C Constant current & 14.6V Constant voltage@0.02C) |
|
Max. Charge Voltage |
14.6V |
|
|
Standard Charge Current |
56A |
|
|
Max.Charge Current |
60A |
|
|
Discharge |
Discharge Cut-o ffVoltage |
10V |
|
Standard Discharge Current |
56A |
|
|
Max.Continuous Discharge Current |
100A |
|
|
Pulse Current |
/ |
|
|
Operating Condition |
Storage Temperature |
0℃to45℃(32℉to113℉) |
|
Humidity |
60±25% |
|
|
Charge Temperature |
0℃to 45℃(32℉to113℉) |
|
|
Discharge Temperature |
-20℃to 45℃(32℉to113℉) |
|
|
Structure |
Water Dust Resistance |
IP55 |
|
Terminal |
F8 |
|
|
Carrying |
/ |
|
|
Case and Cover |
ABS |
|
|

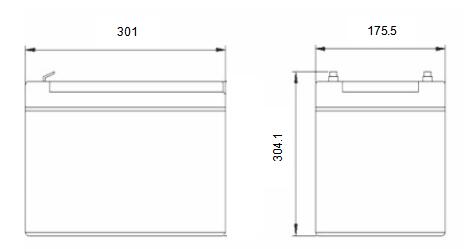

Dimension（L*W*H) |
301*175.5*340.1mm |
|
|
Weight |
Approx25Kg |
Advantages
1.While thickness is changed,we can keep the length and width the same.
2.More flexible,size and capacity can be customized
3.Low-self discharge rate
CE RoHS UN38.3 MSDS
Battery Application
