Rechargeable Li Lon Lithium Battery 3.2V 30Ah High Quality LiPO4 Lithium Battery Cell
Product Features
Application:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat
Usage:Solar/ EV/Marine/Energy Storage
Advantage:
- Excellent high current performance
- Safe and reliability
- No memory effect
- Variety of installation
- High temperature resistance
- Vibration resistance
- Wide operating temperature range
Product Description
|
Electrical Characteristics |
Technology |
Lithium Iron Phosphate |
|
Nominal Voltage |
3.65V |
|
|
Nominal Capacity |
30Ah± 5%@0.2C |
|
|
Energy |
384Wh |
|
|

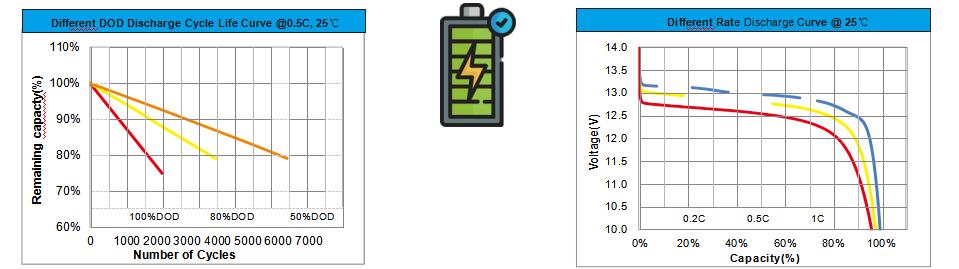

Cycle Life |
100% Depth of Discharge ~2000 cycles |
|
|
Internal Resistance |
30mΩ |
|
|
Self Discharge |
＜3% per month @25℃ |
|
|
Charge |
Charge mode |
CC&CV(0.2C Constant current & 3.65V Constant voltage@0.02C) |
|
Max. Charge Voltage |
3.65V |
|
|
Standard Charge Current |
6A |
|
|
Max.Charge Current |
15A |
|
|
Discharge |
Discharge Cut-off Voltage |
2.5V |
|
Standard Discharge Current |
15A |
|
|
Max.Continuous Discharge Current |
30A |
|
|
Pulse Current |
/ |
|
|
Operating Condition |
Storage Temperature |
0℃to45℃(32℉to113℉) |
|
Humidity |
60±25% |
|
|
Charge Temperature |
0℃ to 45℃(32℉to113℉) |
|
|
DischargeTemperature |
-20℃to 45℃(32℉to113℉) |
|
|
Structure |
Water Dust Resistance |
/ |
|
Teminal |
/ |
|
|
Carrying |
/ |
|
|
Case and Cover |
PVC |
|
|
Dimension（L*W*H) |
177*72*34mm |
|
|
Weight |
Approx1000g |
Battery Application
