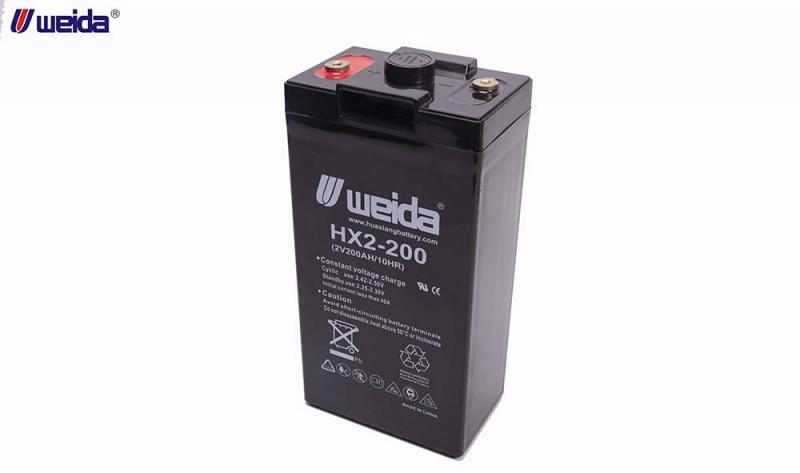

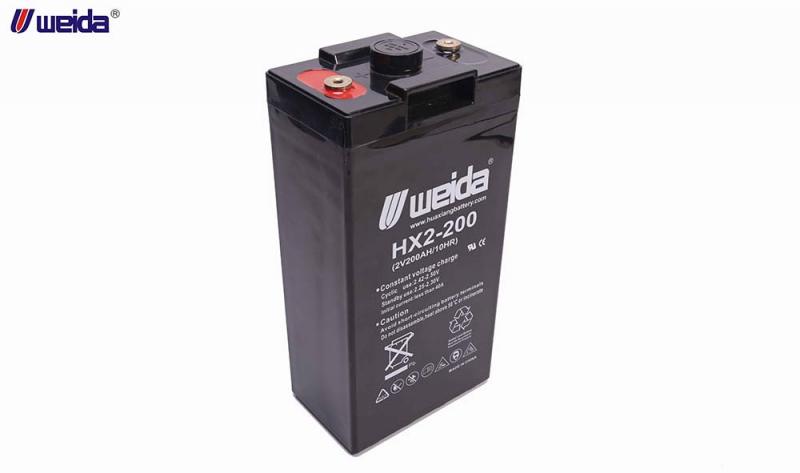

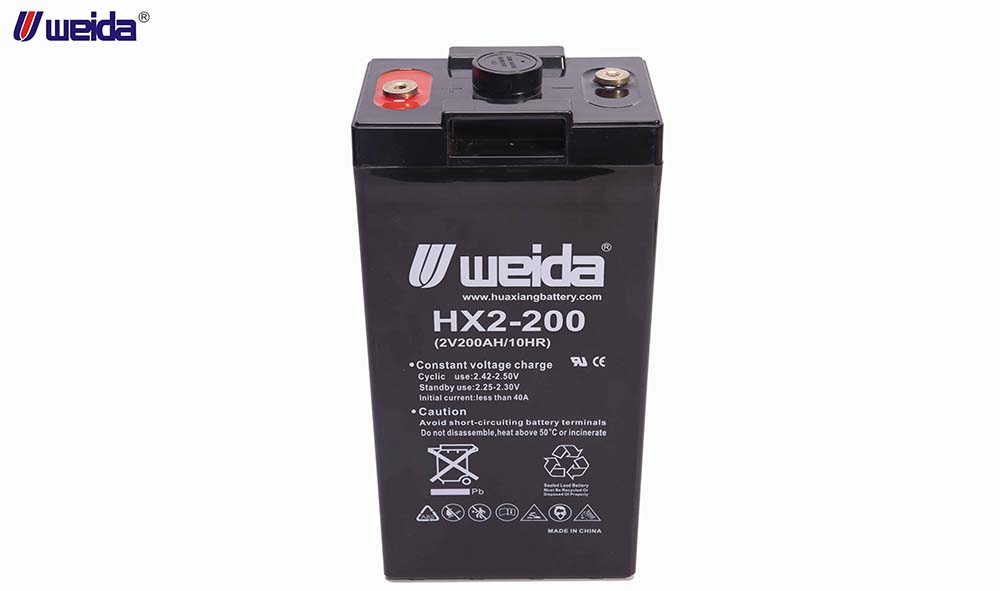

HX2-200 2V 200Ah UPS Battery Lead Acid Battery Solar Batteries

1.Low self-discharge rate, under the condition of 20 ºC, self-discharge rate less than 2% per month.
2. All adopt the high purity raw materials, battery has a very small self-discharge

Item no.:
HX2-200
Nominal Voltage (V):
2V
Nominal Capacity (Ah):
200Ah
Lenght:
171mm
Width:
111mm
Height:
330mm
Total Height:
333mm
Weight:
12.8kg
Terminal Type:
Lead/Copper

Inquiry now Download

product introduction

HX2-200 2V 200Ah UPS Battery Lead Acid Battery Solar Batteries

Application:

1.Marine equipment

2.Emergency lighting systems

3.Nuclear power station

TECHNICAL INFORMATION
Nominal Voltage		2V
Capacity(10HR, 25°C)		200Ah
Dimension	Length	171±2mm(6.67inch)
	Width	131±2mm(4.33inch)
	Height	130±2mm(12.87nch)
Approx. Weight		12.8kg (28.16bs)±4%
Operating temperature range		-20°C~50°C(-4°F~122°F)
Standard charging method(25°C)	Current	0.5A
Standard charging method(25°C)	Time	5~10H
Quickly charging method(25°C)	Current	2.5A
	Time	1H
Terminal material		Lead/Copper
Container material		ABS
