♦Gelled electrolyte made by mixing sulfuric acid with silica fume.
♦The electrolyte is gel like ,immobile and does not leak ,enabling
uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically
Applications :
♦EPS and UPS battery backup
♦Solar and wind energy storage system
♦Telecommunication Equipment
♦Power plant and transmission system
♦Signal system , emergency lighting system , security system

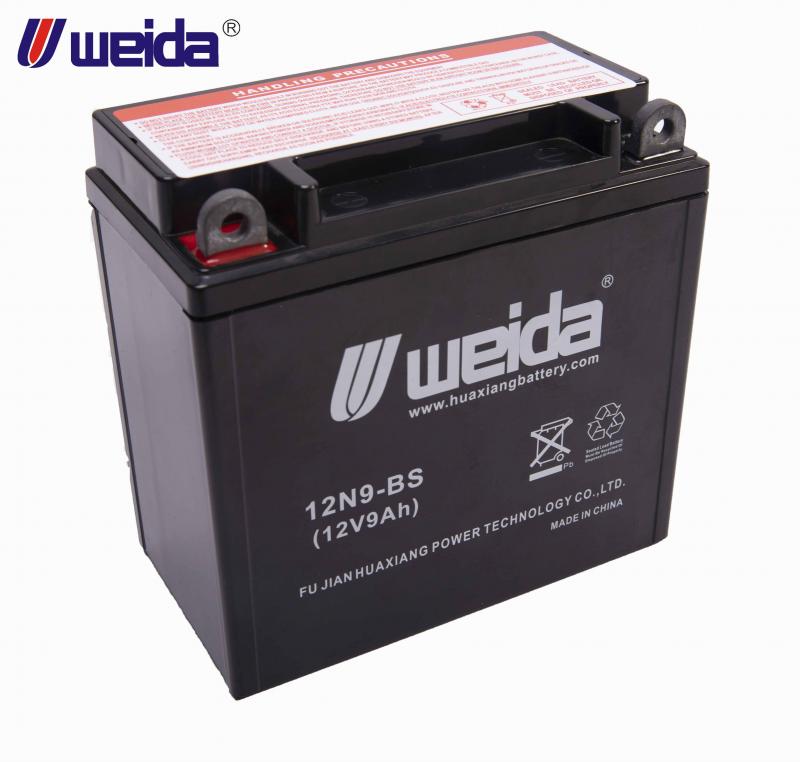

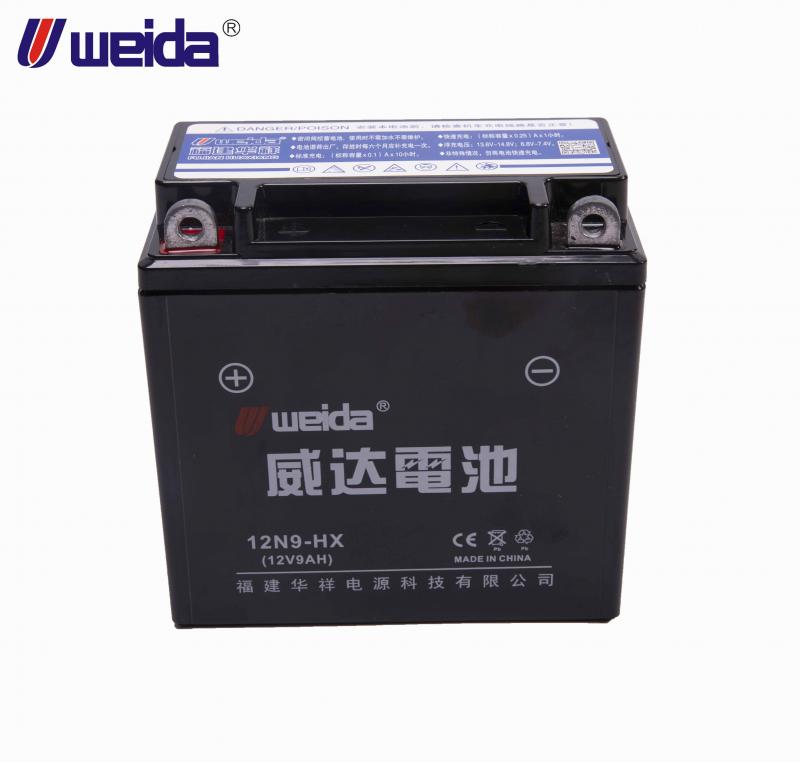

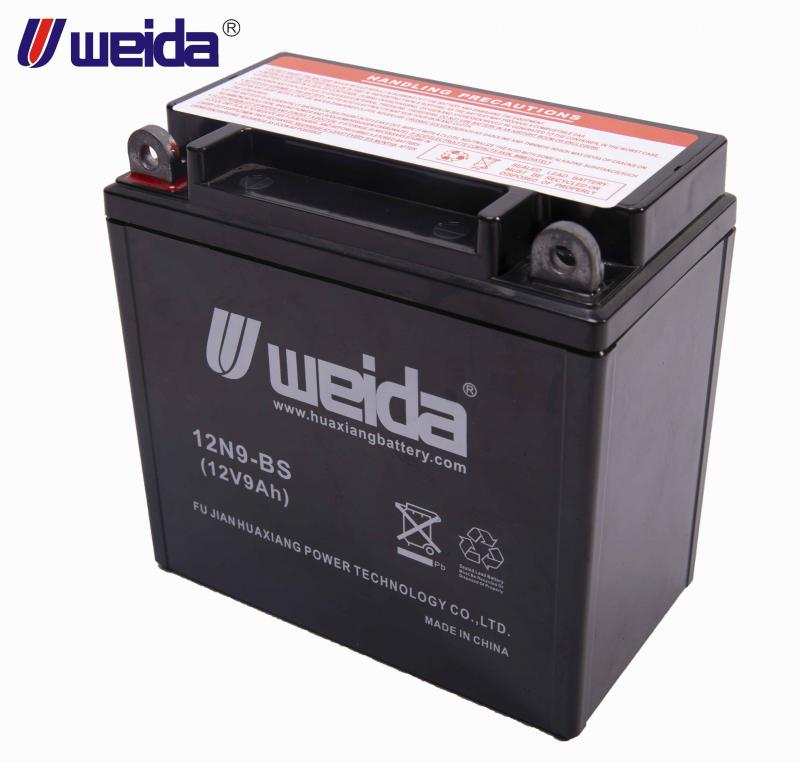

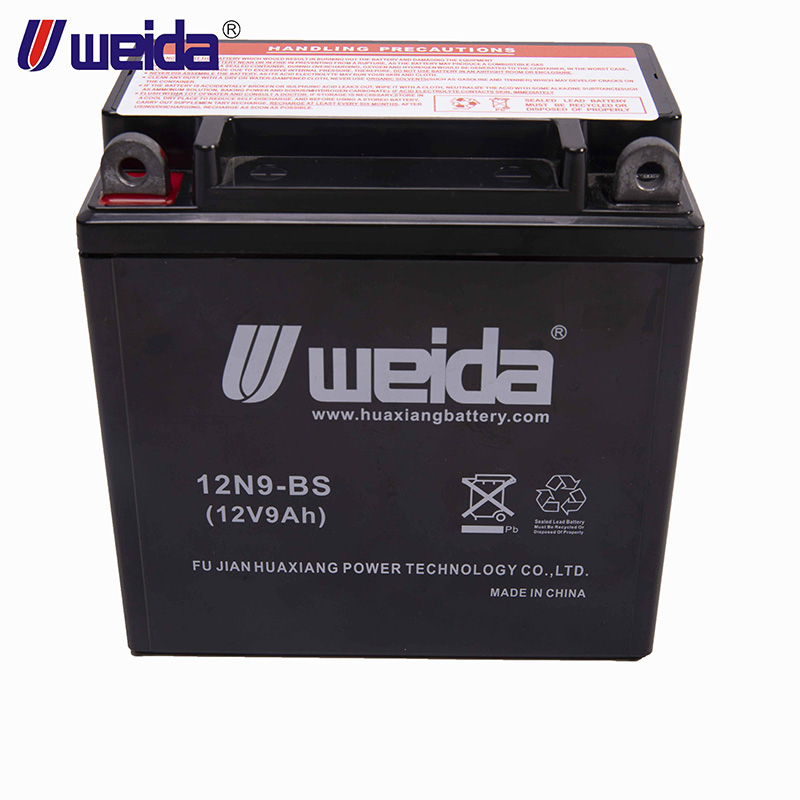

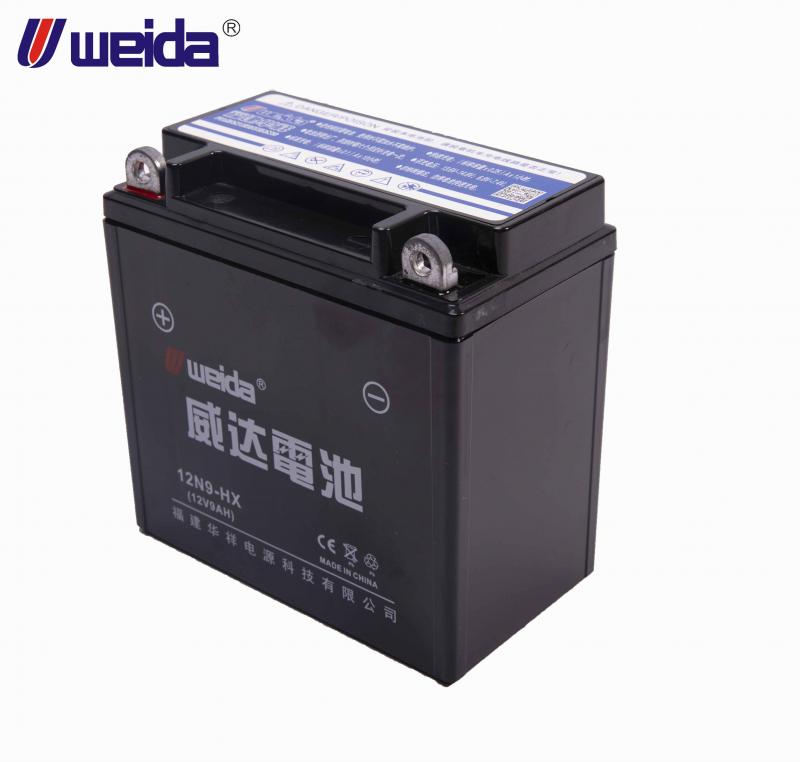

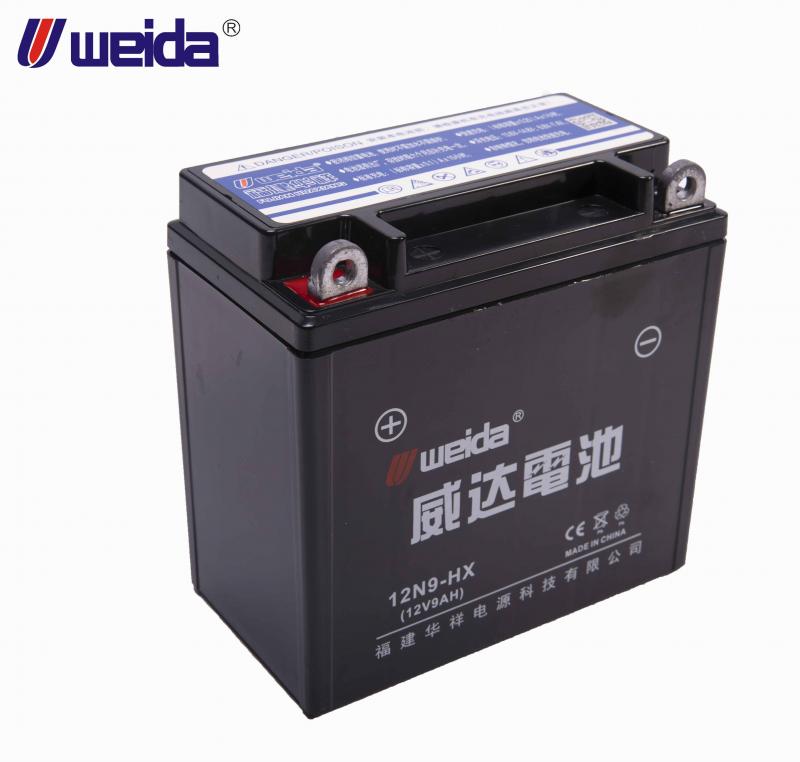

Specifications
|
Nominal Voltage |
12 V |
|
|
Capacity(10HR, 25℃) |
9Ah |
|
|
Dimension |
Length |
151±2mm (5.94inch) |
|
Width |
87±2mm (3.43inch) |
|
|
Height |
107±2mm (4.21inch) |
|
|
Approx. Weight |
3kg (6.61lbs)±5% |
|
|
Operating temperature range |
-20℃～50℃(-4℉～122℉) |
|
|
Standard Charging method (25℃) |
Current |
0.9A |
|
Time |
5~10h |
|
|
Quickly Charging method (25℃) |
Current |
4.5A |
|
Time |
1h |
|
|
Terminal material |
Lead |
|
|
Container Material |
ABS |
|
